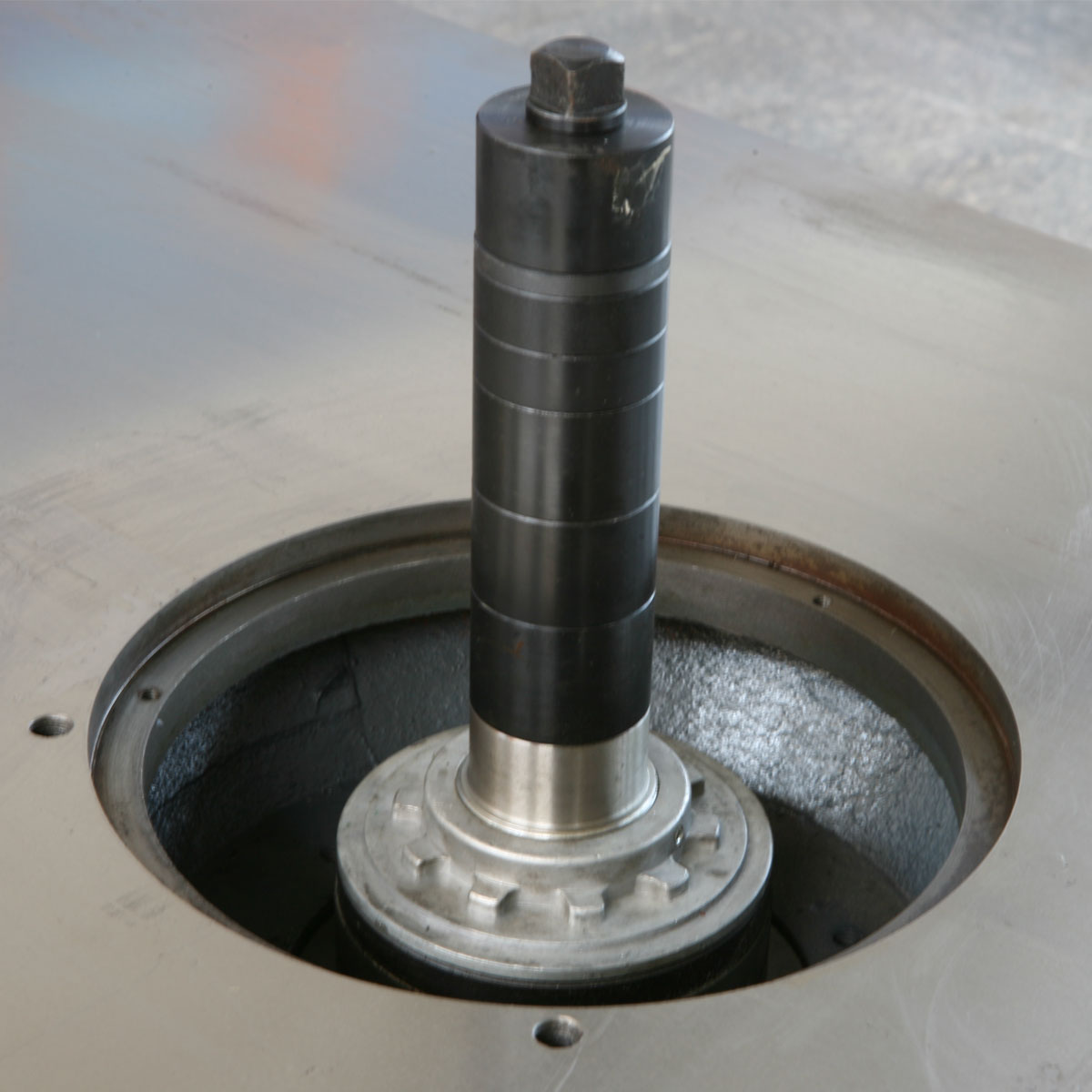

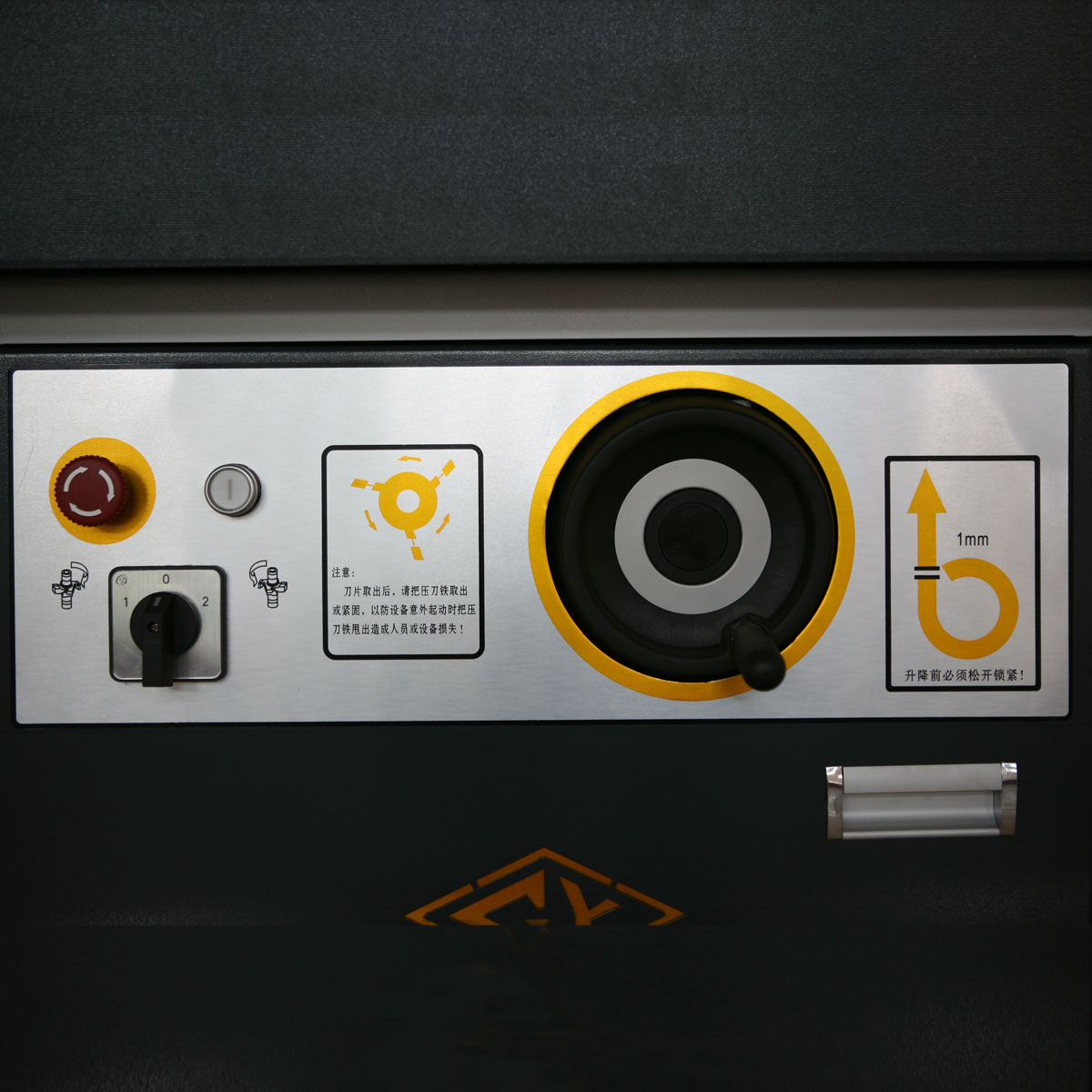

The main spindle can be directed/reversed operation
|
Can be installed big diameter cutter
|
|
|

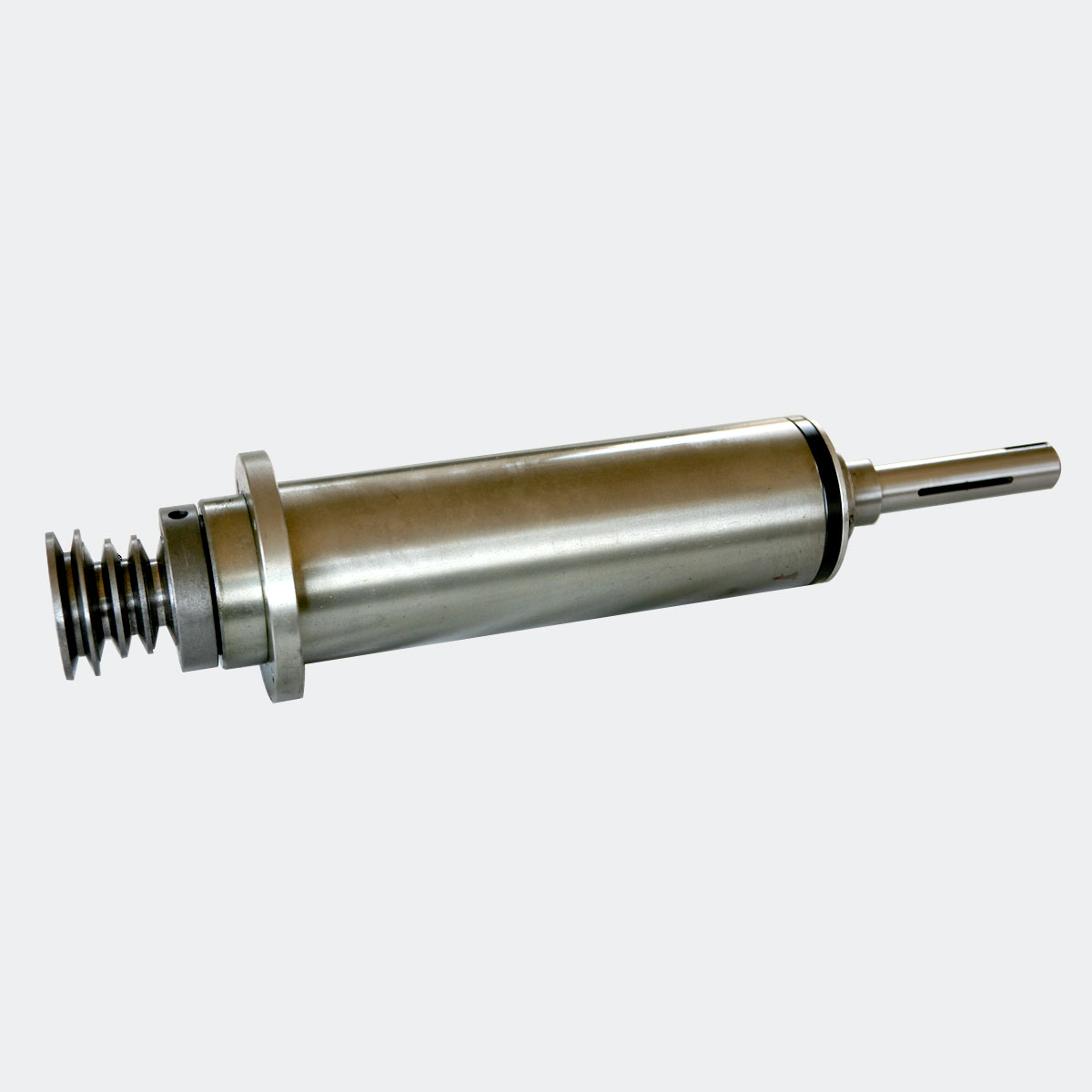

| Vertical Single Spindle Mortising machine | Ultra-quiet spindle at a high speed |
| Technical Specification | Unit | MX5117B |
| Main spindle speed | r/min | 10000/8000/6000 |
| Cutting circle diameter | mm | Φ35(Φ40 optional) |
| Max. milling height | mm | 120 |
| Min. copy radius | mm | R45 |
| Table size | mm | 1130×670 |
| Workbench hole size | mm | Φ210×80 |
| Working table hight | mm | 800 |

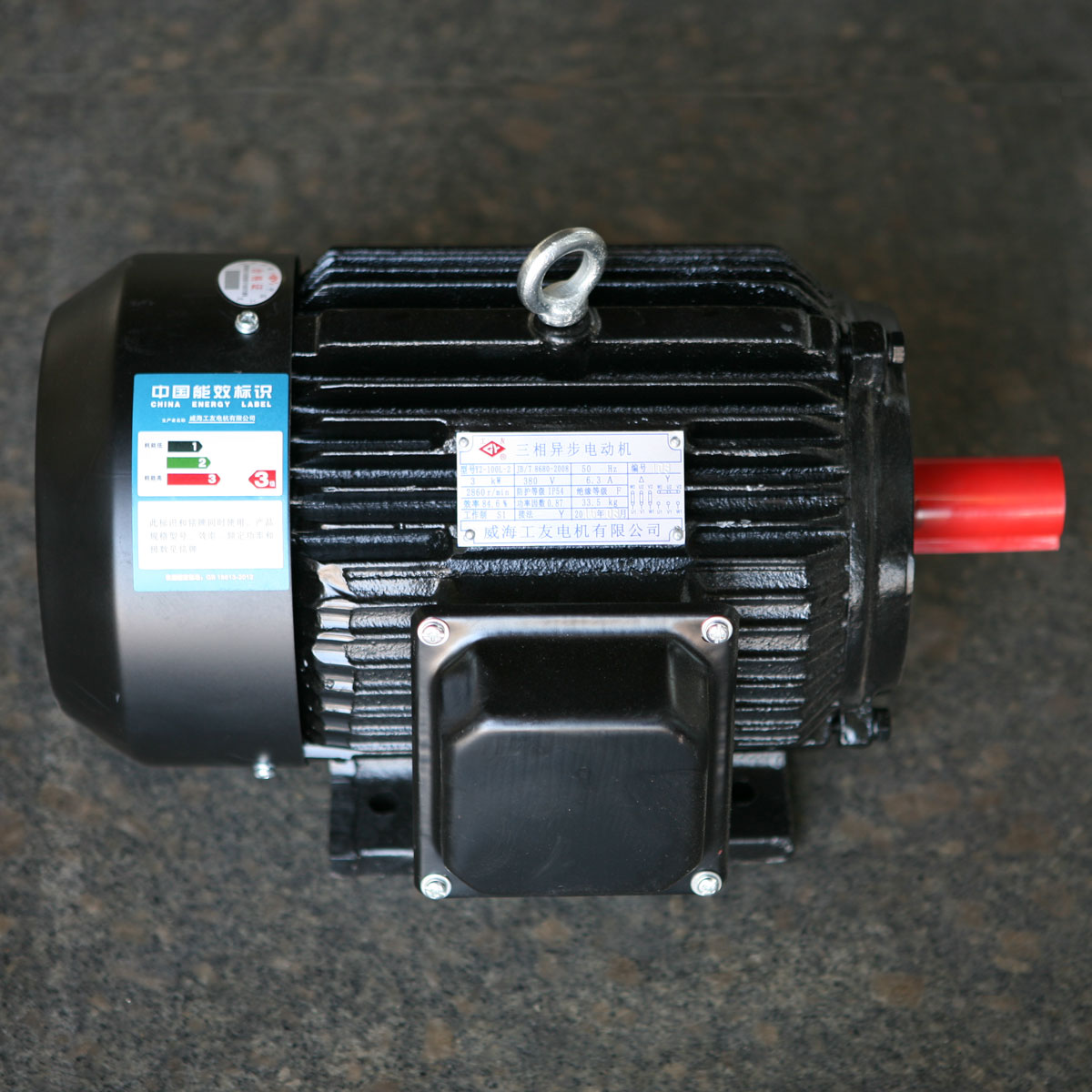

| Motor power | kW | 4(5.5/7.5 optional) |
| Overall dimensions | mm | 1130×670×1000 |
| Net.weight | kg | 338 |
