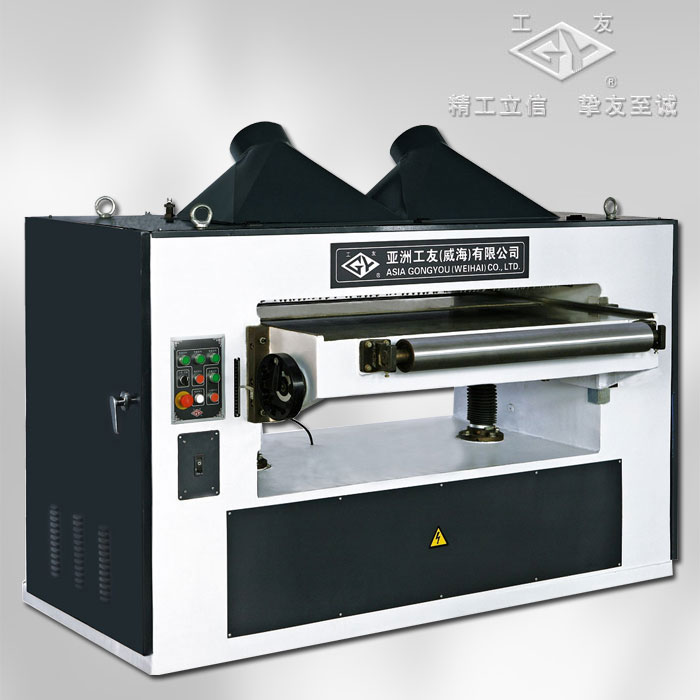

| Technical Specification | Unit | MB1010E | MB1013E |
| Max. planing width | mm | 1000 | 1300 |
| Max. planing thickness | mm | 160 | 160 |
| Min. planing length | mm | 400 | 400 |
| Min. planing thickness | mm | 10 | 10 |
| Max. planing depth | mm | 4 | 4 |
| Main spindle speed | r/min | 4000 | 3600 |
| Feeding speed | m/min | 7.6/10.1/15.2 | 7.6/10.1/15.2 |
| Spindle cutting dia. | mm | ?140 | ?150 |
| Main motor power | kW | 11 | 18.5 |
| Feeding motor power | kW | 1.8/2.6/3 | 1.8/2.6/3 |
| Lifting motor | kW | 0.75 | 0.75 |
| Overall dimensions | mm | 1940×1319×1655 | 2241×1532×1655 |
|
Net.weight |
kg |
2600 |
3200 |
